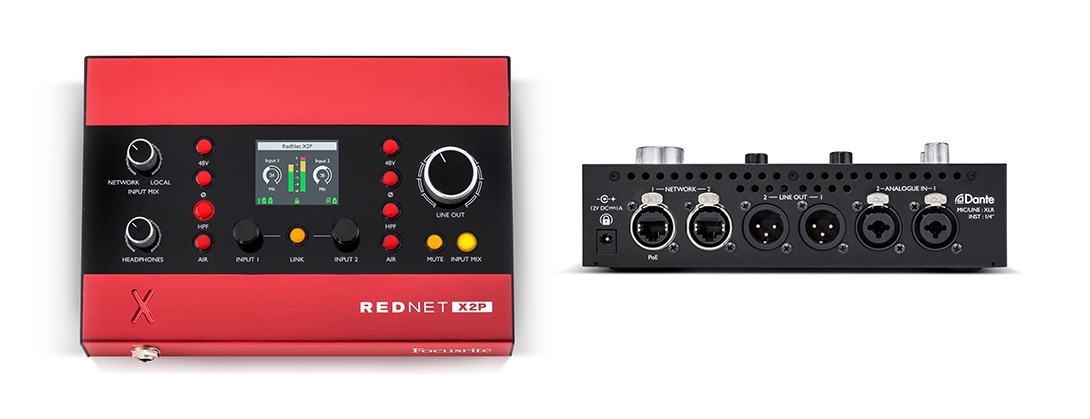

Focusrite RFR REDNET-X2P

Gain Range

0dB to 68dB in 1dB steps

Type

Electronically Balanced, Zin = 6.2kO

Max. Input Level

>+24dBu, min gain

Frequency Response

20Hz – 35kHz ±0.1dB

THD + N

-103dB (0.0007%) @ -1dBFS (@ 24dB Gain)

EIN

<-130dBu ’A’-Weighted (typical)

Signal-To-Noise Ratio

-120dB ’A’-Weighted (typical), min gain

Common-Mode Rejection Ratio

50/60Hz CMRR: -80dB

Phantom Power

+48V, independently switchable per channel.

HPF

High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel

Air Mode

2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO

Instrument Inputs Gain Range

0dB to 68dB in 1dB steps

Instrument Inputs Type

Electronically Balanced, Zin = 2MO

Instrument Inputs Max. Input Level

>+15dBu, min gain

Instrument Inputs Frequency Response

20Hz – 35kHz ±0.1dB

Instrument Inputs THD + N

<-100dB (0.001%) @ -1dBFS (@ 16dB Gain)

Instrument Inputs Signal-To-Noise Ratio

-118dB ’A’-Weighted (typical), min gain

Instrument Inputs HPF

High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel

Line Level Outputs 0 DBFS Reference Levels

+18 or +24dBu (switchable)

Line Level Outputs Frequency Response

20Hz – 35kHz ±0.1dB

Line Level Outputs THD + N

<-104dB (0.0006%) @ -1dBFS

Line Level Outputs Dynamic Range

-120dB ’A’-Weighted (typical), 20Hz – 20kHz

Headphone Output 0 DBFS Reference Levels

>+19dBm

Headphone Output Frequency Response

20Hz – 20kHz ±0.2dB

Headphone Output THD + N

<-103dB (0.0007%) @ -1dBFS

Headphone Output Dynamic Range

117dB ’A’-weighted (typical), 20Hz – 20kHz

Headphone Output Impedance

5O

Headphone Impedance

32O – 600O

Mic/Line Input To Input

< -72dB; 20Hz – 20kHz (driven channel at -20dBFS)

Mic/Line Input To Output

< -126dB; 20Hz – 20kHz (driven channel at -20dBFS)

Output To Mic/Line Input

< -159dB; 20Hz – 20kHz (driven channel at -20dBFS)

Output To Output

< -101dB; 20Hz – 20kHz (driven channel at -20dBFS)

Right To Left

< -85dB; 20Hz – 20kHz (driven channel at -20dBFS)

Supported Sample Rates

44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit

Clock Sources

Internal or from Dante Network Master.

Outputs Headphone Outputs

1 x 1/4″ stereo jack

Inputs Mic/Line/Inst Inputs

2 x Locking Combi XLR

Outputs Line Outputs

2 x Male XLR

PSU (PoE And DC)

1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector.

Network

2 x etherCON connectors, also compatible with standard RJ45 connectors.

LCD Screen

1 x Screen (Status & Metering)

Height (Chassis Only)

47.5mm/ 1.87″

Width

140mm/ 5.51″

Depth (Chassis Only)

104mm/ 4.09″

Weight

1.04kg

Power Over Ethernet (PoE)

Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)

DC Power Supply

1 x 12V 1.2A DC Power Supply.

Power Consumption

PoE: 11.0W – DC: 13.32W (When using supplied DC PSU)

Operating Temperature

Operates at up to an ambient temperature of 45 degrees Celcius
