The new Audio 3-stage CLASS-H SMPS amplifiers incorporate all the features to meet all your needs, whether youre starting a P.A. amplifier project from scratch or just need to upgrade your present sound reinforcement equipment. In the amps, youll find 2 and 4 channel models, all offering high power levels at low distortion in the range 1.5 to 6 kW, yet weighing around 8.6 kg and only 30 cm deep.

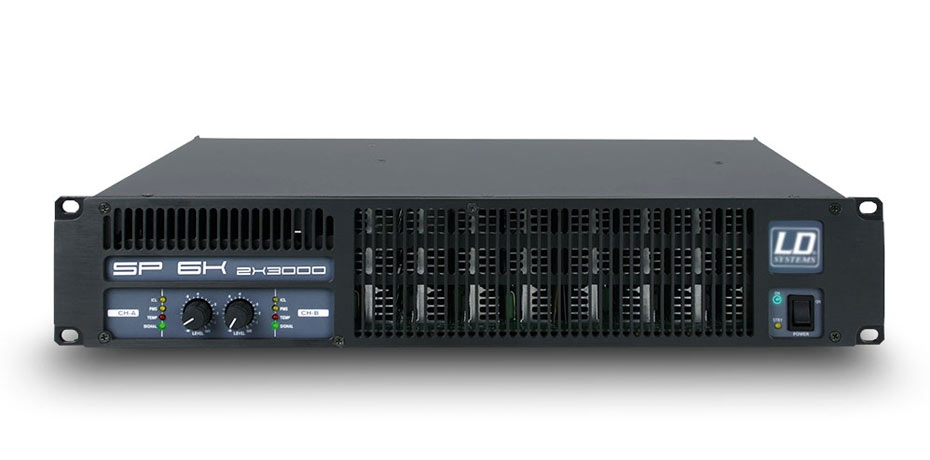

– Model Name: SP6K
– Output Power 1 kHz, <0,05 % THD:
– 2 Ohm 2 x 2950 W
– 4 Ohm 2 x 2025 W
– 8 Ohm 2 x 1250 W
– Bridge at 4 Ohm 3900 W
– Bridge at 8 Ohm 5900 W
– Output Circuity: Class H
– Frequency Range (power bandwidth 0.25 dB): 20 Hz – 20 kHz
– THD (20 Hz – 20 kHz): < 0.05 %
– S/N Ratio: 118 dB
– Damping Factor (20 Hz – 500 Hz at 8 Ohm): > 500
– Crosstalk (20 Hz – 20 kHz): > 75 dB
– Voltage Gain (selectable): 26 / 32 / 38 dB
– Input Sensitivity: 5.0 / 2.5 / 1.3 V
– Protection: Soft-start, Turn-on Turn-off transients, Muting at turn-on, Over-heating, DC, RF, Short-circuit, Open or mismatched loads, Overloaded power supply, ICL (Inteligent Clip Limiting), PMS (Power Management System), SSP (SOA Sentry Protection)
– Controls: On / Off Switch, Volume, Voltage Gain, Dual / Link Switchable, Bridge Mode Configuration Switch
– Indicators: Signal, Temperature, ICL (Inteligent Clip Limiting), PMS (Power Management System)
– Connectors:
– Input: 2 x XLR
– Line Output: 2 x XLR
– Speaker Output: 2 x Speakon
– Power Supply: 230 V – 50 Hz
– Dimensions (W x H x D): 483 88.9 310 mm
