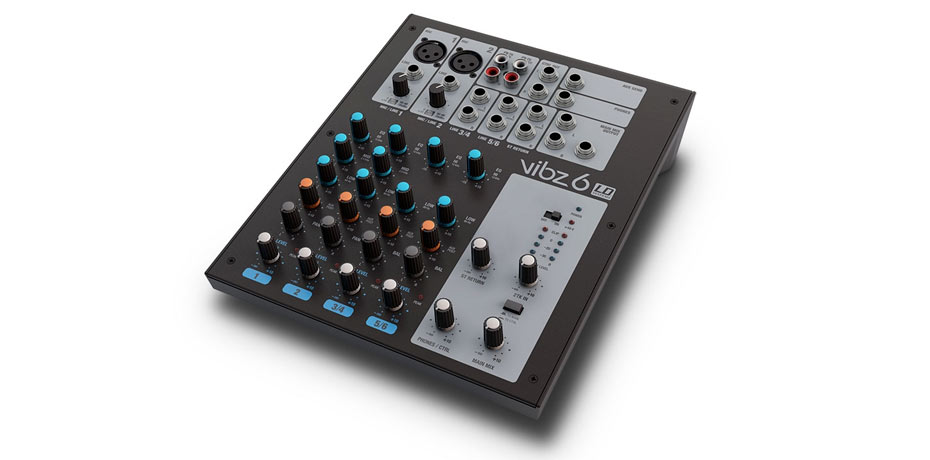

LD Systems VIBZ 6

The VIBZ 6 is acompact 6-channel mixerwhich is perfectly suited to entertainers, small bands, home recording and installations. It featurestwo balanced microphone inputs with high quality preamps,phantom power and 3-band EQ with /-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible.The master section of the VIBZ 6 is equipped withadjustable monitor outputs, a headphone jack. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.An adapter for mounting the VIBZ 6 on microphone stands is available as accessories.
– Item Number: LDVIBZ6
– Product Type: mixer
– Type: live
– Number of Channels: 6
– Mono Mic/Line Input Channels: 2
– Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
– Mono Mic Input Type: electronically balanced
– Frequency Response Mono Mic Input: 10 – 45,000 Hz
– Amplification Range Mono Mic Input: 0 – 50 dB
– Insert: n/a
– Channel Crosstalk: 62 dB
– THD Mono Mic Input 0.0058 %
– Impedance Mono Mic Input: 4 kOhm
– S/N Ratio Mono Mic Input: 113 dB
– Mono Line Input Type: electronically balanced
– Amplification Range Mono Line Input: 0 – 50 dB
– THD Mono Line Input: 0.0045 %
– Impedance Mono Line Input: 21 kOhm
– S/N Ratio Mono Line Input: 116 dB
– Frequency Response Mono Line Input: 10 – 45,000 Hz
– Mono Channel Equalizer Treble: /- 15 dB 12,000 Hz
– Mono Channel Equalizer Mids: /- 15 dB 2,500 Hz
– Mono Channel Equalizer Bass: /- 15 dB 80 Hz
– Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, AUX (Post), 3 Band-EQ (Low, Mid, High), Gain
– Phantom Power: 48 V DC switchable
– Low Cut: n/a
– Compressor: n/a
– Stereo Channels:
– Stereo Line Input Channels: 2
– Stereo Line Input Channels: 6.3 mm mono jack (Lmono, R)
– Stereo Line Input Type: unbalanced
– Frequency Response Stereo Line Input: 10 – 45,000 Hz
– Channel Crosstalk: 62 dB
– THD Stereo Line Input: 0.0045 %
– Impedance Stereo Line Input: 3.7 kOhm
– S/N Ratio Stereo Line Input: 116 dB
– Stereo Channel Equalizer Treble: /- 15 dB 12,000 Hz
– Stereo Channel Equalizer Mids: n/a
– Stereo Channel Equalizer Bass: /- 15 dB 80 Hz
– Control Elements Stereo Line Input Channels: Channel volume, Balance, AUX (Post), 2 Band-EQ (Low, High)
– Main Section:
– AUX/Effect Send Channels: 1
– AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
– Stereo AUX Return Channels: 1 x stereo
– Stereo AUX Return Connections: 2 x 6.3 mm stereo jack
– Stereo Tape Output Channel: 1 x stereo
– Stereo Tape Output Connections: 2 x RCA (Cinch)
– Stereo Tape Input Channel: 1 x stereo
– Stereo Tape Input Connections: 2 x RCA (Cinch)
– Unbalanced Stereo Main Outputs: 1
– Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
– Impedance Unbalanced Stereo Main Outputs: 120 Ohm
– Max. Level Unbalanced Stereo Main Outputs: 20 dBV
– Stereo Control Room Outputs: 1
– Stereo Control Room Output Connections: 6.3 mm stereo jack, unbalanced
– Headphone Output: 1
– Minimum Headphone Impedance: 30 Ohm
– Headphone Output Connections: 6.3 mm stereo jack
– Digital effects processor: No
– Control Elements Main Section: Headphones / Control Room Volume, Stereo Return Volume, Master-Volume, 2TR assignment (Main, CTRL Room), 2TK Volume, Phantom Power,
– Display Elements: 4-segment Level Meter, Phantom Power, Power, Channel Peak
– Power Supply: 18 V AC – 1 A, External Power Pack
– Width: 209 mm
– Height: 68 mm
– Depth: 260 mm
